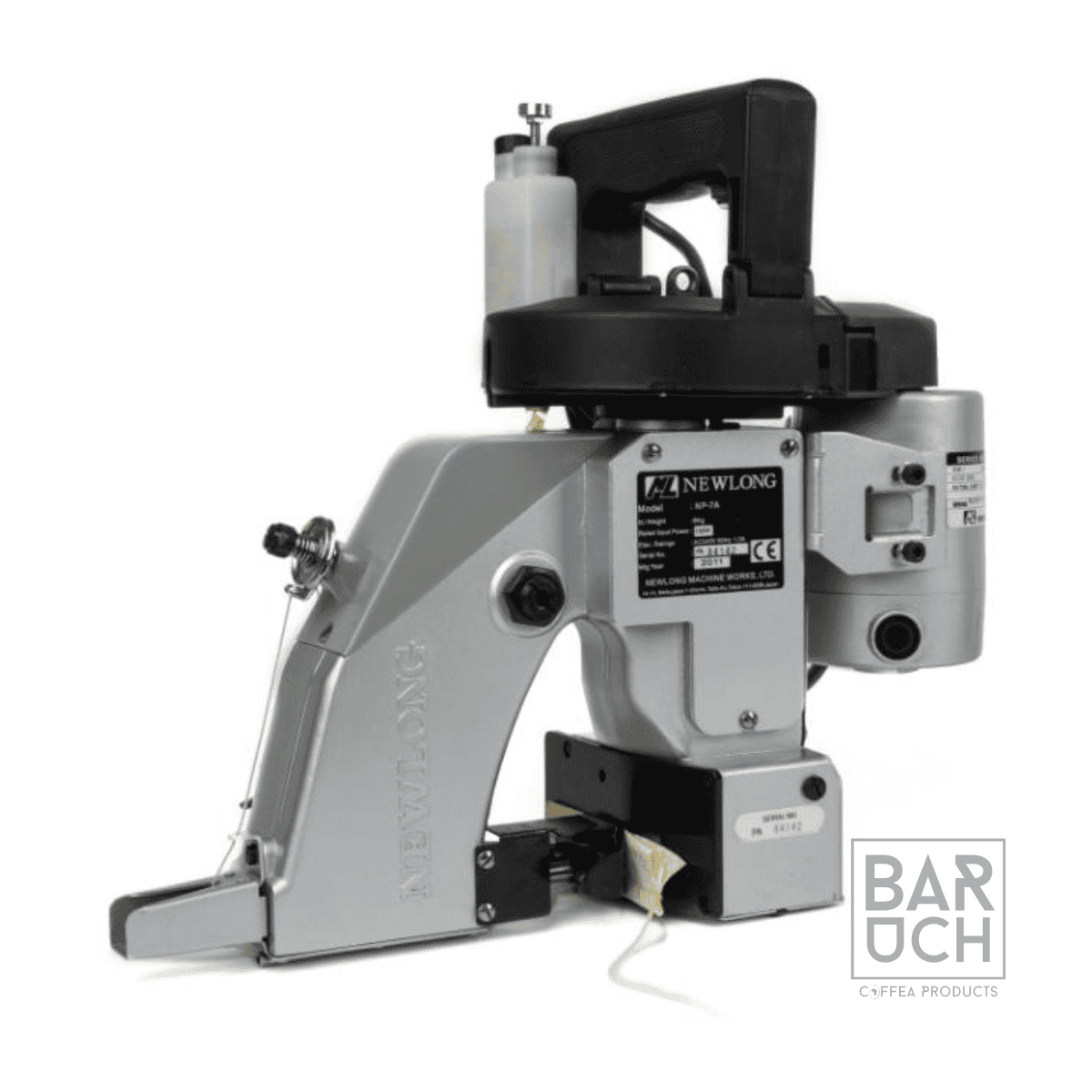

Newlong NP-7A Portable Bag Closing Machine Japan | Baruch Coffea
The Newlong NP-7A Portable Bag Closing Machine is a durable Japanese-made industrial bag stitcher designed for fast and reliable sealing of filled sacks and packaging bags.
It produces a strong single-thread chain stitch and can close kraft paper, woven polypropylene, polyethylene, cotton, hessian and jute bags. Its portable handheld design makes it suitable for coffee processors, grain millers, farms, warehouses and packaging operations.
Key Features
- Genuine Newlong industrial bag closer
- Manufactured in Japan
- High-speed operation up to 1,900rpm
- Single-thread chain-stitch closure
- Fixed 8.5mm stitch length
- Semi-automatic thread cutter
- Built-in oil-pump lubrication system
- Durable steel cam for continuous operation
- Insulated handle for safer handling
- Compact and portable design
- Easy to operate and maintain
Need help choosing the right Processing Equipment? Contact us today, we are happy to assist.
Description
The Newlong NP-7A is a professional portable bag-closing sewing machine developed for businesses that require quick, secure and consistent sealing of filled bags.
Its single-thread chain-stitch system creates a dependable closure while still allowing the bag to be opened by pulling the thread when required. This makes it particularly practical for coffee, grain, flour, animal feed, fertiliser and other packaged agricultural or industrial products.
The machine can sew different packaging materials, including kraft paper, cotton, hessian, jute and PP/PE woven sacks. It can handle jute material up to approximately 8mm thick.
Fast and Reliable Bag Closing
Operating at approximately 1,700–1,900 revolutions per minute, the NP-7A can close a standard filled bag in roughly five to eight seconds, depending on the bag material and operator. This makes it suitable for low- and medium-volume production lines, manual packing stations and rework areas.
Built for Continuous Industrial Use
The NP-7A features a durable steel cam and an integrated oil-pump lubrication system that supplies oil to important internal moving parts. The simple mechanical construction supports dependable operation, straightforward servicing and reduced maintenance requirements.
Portable and Easy to Operate
Weighing approximately 6kg, the machine can be carried directly to the filled bag instead of requiring every bag to be moved through a fixed sewing station.
Its insulated handle improves operator comfort, while the built-in thread cutter allows the operator to complete each closure quickly and prepare the machine for the next bag.
Suitable Applications
The Newlong NP-7A is suitable for closing bags containing:
- Roasted or green coffee beans
- Coffee husks and agricultural produce
- Grain, rice, maize and flour
- Animal feed and seeds
- Fertiliser and chemicals
- Sugar and powdered products
- Charcoal and pellets
- Potatoes and vegetables
Technical Specifications
| Specification | Details |
|---|---|
| Model | Newlong NP-7A |
| Machine type | Portable bag-closing sewing machine |
| Country of manufacture | Japan |
| Stitch type | Single-thread chain stitch |
| Maximum speed | Up to 1,900rpm |
| Typical operating speed | 1,700–1,900rpm |
| Stitch length | 8.5mm fixed |
| Stitches per inch | Approximately 3 |
| Needle | DN × 1, Size #25 |
| Thread cutter | Semi-automatic |
| Lubrication | Hand-operated oil-pump system |
| Recommended oil | Tellus #32 or equivalent |
| Maximum material thickness | Approximately 8mm for jute |
| Suitable materials | Kraft paper, cotton, hessian, jute and PP/PE woven bags |
| Machine weight | Approximately 6kg |
| Power supply | Single-phase |
| Available voltage | 110V, 220V or 240V, depending on configuration |
Â
Need help choosing the right Processing Equipment? Contact us today, we are happy to assist.
Additional information
| Weight | 6 kg |
|---|---|
| Max Speed | 1900rpm |
| Stich Width | 8.5mm |
| Needle | DN×1 #25 |
| Oil | Tellus #32 |
